Automatic Globe Type Needle Valves

M3R4-750-UPG Series Representative Product No.：M3R4-750-6.35UPG-N28.5

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Max Temperature(℃)：85　Min Temperature(℃)：-40 Connection Type： Metal Gasket Type,UPG Feature： High Pressure Gas Certified

View Series Detail Inquire

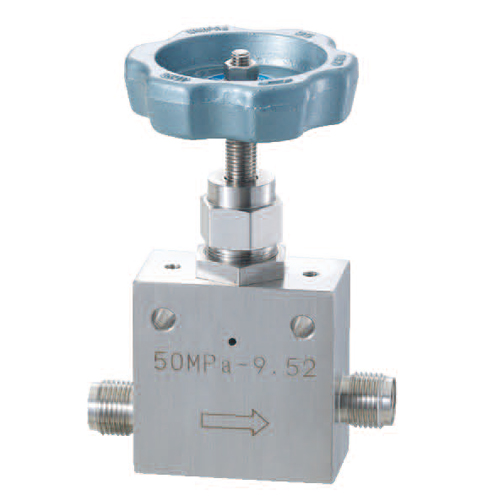

Manual Globe Type Needle Valves

UH-750L-UPG Series Representative Product No.：UH-750L-6.35UPG-N28.5

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Max Temperature(℃)：85　Min Temperature(℃)：-40 Connection Type： Metal Gasket Type,UPG Feature： High Pressure Gas Certified

View Series Detail Inquire

Check Valves

UCL-750-UPG Series Representative Product No.：UCL-750-6.35UPG-N28.5

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Max Temperature(℃)：85　Min Temperature(℃)：-40 Connection Type： Metal Gasket Type,UPG Feature： High Pressure Gas Certified

View Series Detail Inquire

Filters

UFL-750-UPG Series Representative Product No.：UFL-750-6.35UPG-2-N28.5

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Max Temperature(℃)：85　Min Temperature(℃)：-40 Connection Type： Metal Gasket Type,UPG Feature： High Pressure Gas Certified

View Series Detail Inquire

Cone & Thread type Adapters

UPGXHP Series Representative Product No.：UPGXHP

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Connection Type： External Thread Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Cone & Thread type Adapters

UPGXHP Series Representative Product No.：UPGXHP

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Connection Type： External Thread Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Cone & Thread type Adapters

UPGXHP Series Representative Product No.：UPGXHP

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Connection Type： External Thread Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Cone & Thread type Adapters

UPGXHP Series Representative Product No.：UPG-H-9.52X6.35HP-N28.5

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Max Temperature(℃)：250　Min Temperature(℃)：-40 Connection Type： Metal Gasket Type,Various Change Couplers for UPG,Cone & Thread Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Cone & Thread type Adapters

UPGXMP Series Representative Product No.：UPGXMP

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Connection Type： External Thread Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Union Gasket Type Sleeve

UPG-INMS Series Representative Product No.：UPG-6.35S-L23-50M-N28.5

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：50 Max Temperature(℃)：250　Min Temperature(℃)：-45 Connection Type： Metal Gasket Type,Sleeve,Welding Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Ball Valves

VUBV-968P-V Series New V Collection（inch） Product No.:VUBV-968P-9.52-V Size： 9.52mm

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：51.6 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type

View Detail Inquire

Ball Valves

VUBV-968P-V Series Representative Product No.：VUBV-968P-9.52-V

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：51.6 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type

View Series Detail Inquire

Ball Valves

VUBV-968P-V Series New V Collection（mm） Product No.:VUBV-968P-8-V Size： 8mm

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：51.8 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type

View Detail Inquire

Ball Valves

VUBV-968P-V Series Representative Product No.：VUBV-968P-8-V

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：51.8 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type

View Series Detail Inquire

Ball Valves

VUBV-968P-V Series New V Collection（mm） Product No.:VUBV-968P-10-V Size： 10mm

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：57.8 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type

View Detail Inquire

Ball Valves

VUBV-968P-V Series Representative Product No.：VUBV-968P-10-V

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：57.8 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type

View Series Detail Inquire

Manual Globe Type Needle Valves

VUH-168P Series New V Collection（NPT） Product No.:VUH-168PDN Size： 1/2NPTめねじ

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：68.9 Max Temperature(℃)：232　Min Temperature(℃)：-53 Connection Type： Internal Thread

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

VUH-168P Series New V Collection（R・Rc screw） Product No.:VUH-168PB Size： Rc1/4

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：68.9 Max Temperature(℃)：232　Min Temperature(℃)：-53 Connection Type： Screw

CAD data：

View Detail Inquire

CAD Data：あり

Ball Valves

VUBV-968P-V Series New V Collection（inch） Product No.:VUBV-968P-6.35-V Size： 6.35mm

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：68.9 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type

View Detail Inquire

Ball Valves

VUBV-968P-V Series New V Collection（mm） Product No.:VUBV-968P-6-V Size： 6mm

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：68.9 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type

View Detail Inquire
