![](img/Mainte00.jpg)

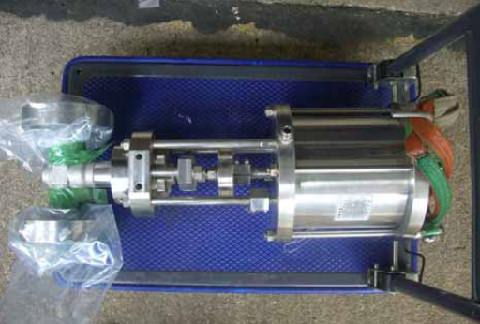

Periodic maintenance is directly performed on-site by our experienced staff.
Maintenance case example for company A
- Regular inspection of equipment every year
-
Inspection items
- 1)Disassembly / inspection
- 2)Restoration / cleaning
- 3)Exchange parts
- 4)Assemble / install piping
- 5)Adjust / inspect / check results
- 6)Create report
1)Disassembly / Inspection
![](img/Mainte01.jpg)
![](img/Mainte02.jpg)
Location: Work room (left), clean room (right), inspection
![](img/Mainte03.jpg)
Disassembly / Inspection
Location: Clean room

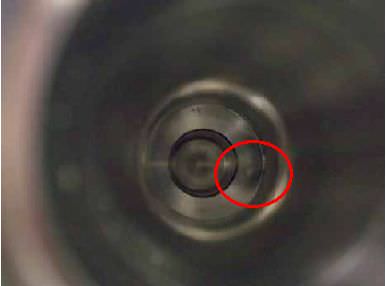

Situation: Damage is discovered on the exit seat of the body. Lapping is performed.
Lapping procedure: Several times with 800, then finished several times with 2000.
![](img/Mainte04.jpg)

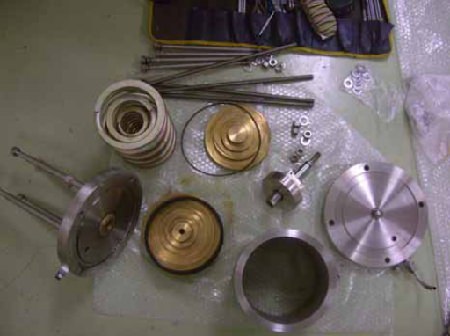

2)Restoration / Cleaning
![](img/Mainte05.jpg)
Location: Clean room
Situation: Parts cleaning
Cleaning fluid: Approximately 150cc of IPA and acetone are used for rough cleaning, and 200cc of alternative CFCs is used.

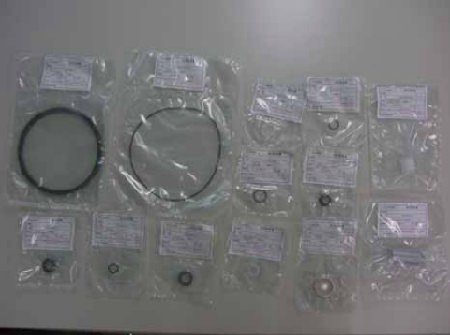

3)Exchange parts
![](img/Mainte06.jpg)
Location: Clean room
Replace parts (new parts) <according to the usable parts list>
4)Assemble / Install Piping
![](img/Mainte07.jpg)
![](img/Mainte10.jpg)
After assembly, piping is installed
5)Adjust / Inspect / Check Results
![](img/Mainte12.jpg)
![](img/Mainte14.jpg)
Aperture, limit adjustment and confirm operation

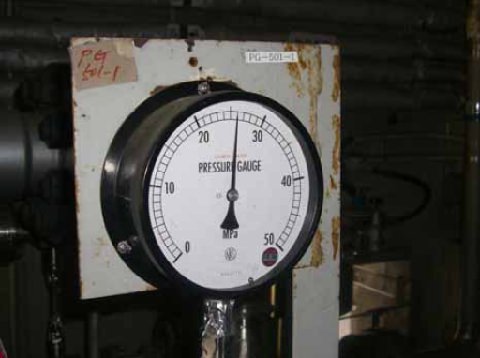

External (airtight) leak inspection
Pressure of 26MPa / liquid nitrogen gas
Maintain for 10 minutes and check for leaks
Inspection passed
6)Create Report
After completing the work, we will create not only a work report, but also an inspection report with the maintenance results. Please instruct the staff at the time of maintenance.
