｜Product Information | Fujikin Incorporated

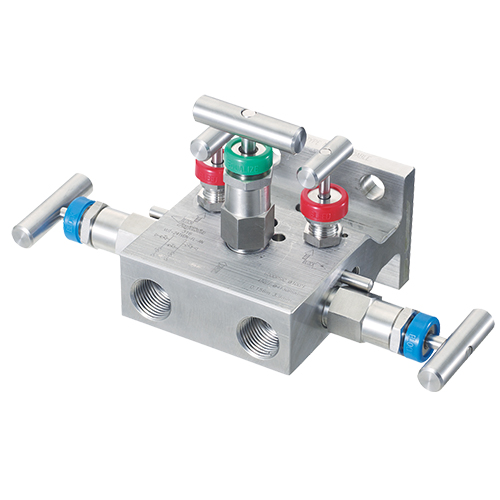

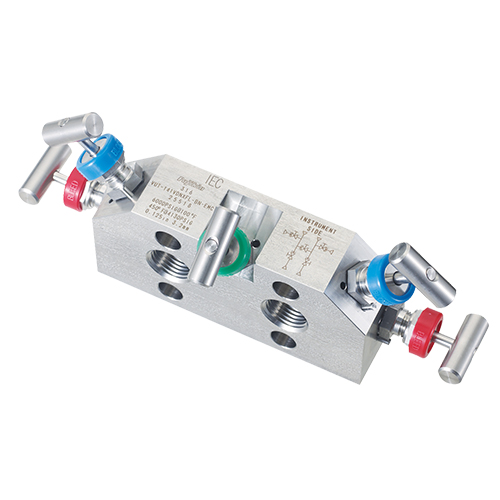

Manual Manifold Valves

VUT-141VDNXFL-BN-BL Series Representative Product No.：VUT-141VDNXFL-BN-EMC-BL

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-28 Connection Type： Flange,Internal Thread

View Series Detail Inquire

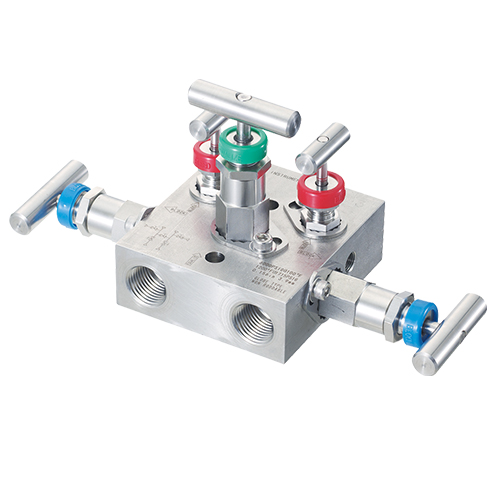

Manual Manifold Valves

VUT-141LVDN Series Representative Product No.：VUT-141LVDN-AN

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-28 Connection Type： Internal Thread

View Series Detail Inquire

Manual Manifold Valves

VUT-141LVDN-GR Series Representative Product No.：VUT-141LVDN-AN-GR

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：648　Min Temperature(℃)：-53 Connection Type： Internal Thread

View Series Detail Inquire

Manual Manifold Valves

VUT-141LVDN-BL Series Representative Product No.：VUT-141LVDN-AN-BL

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-28 Connection Type： Internal Thread

View Series Detail Inquire

Manual Manifold Valves

VUT-141LDNXFL-BN Series Representative Product No.：VUT-141LVDNXFL-BN-GUU

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-28 Connection Type： Flange,Internal Thread

View Series Detail Inquire

Manual Manifold Valves

VUT-141LVDNXFL-BN-GUU-BL Series Representative Product No.：VUT-141LVDNXFL-BN-GUU-BL

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-28 Connection Type： Flange,Internal Thread

View Series Detail Inquire

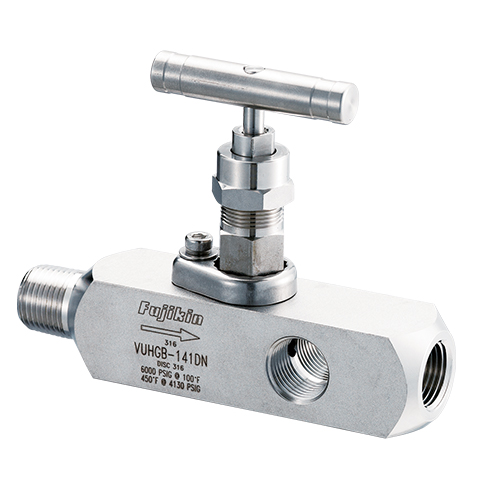

Manual Gauge Valves

VUHGB-141DN Series Representative Product No.：VUHGB-141DN

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-28 Connection Type： External Thread Type,Internal Thread

View Series Detail Inquire

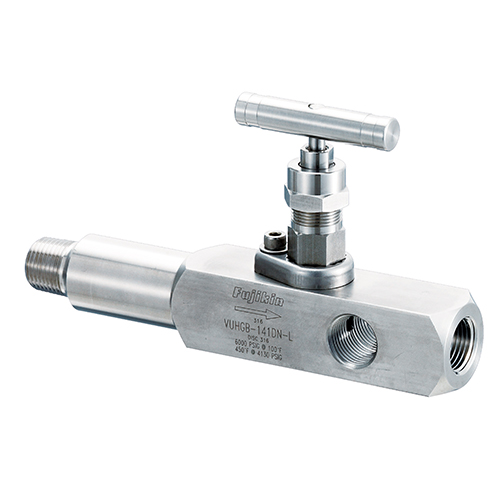

Manual Gauge Valves

VUHGB-141DN-L Series Representative Product No.：VUHGB-141DN-L

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-28 Connection Type： External Thread Type,Internal Thread

View Series Detail Inquire

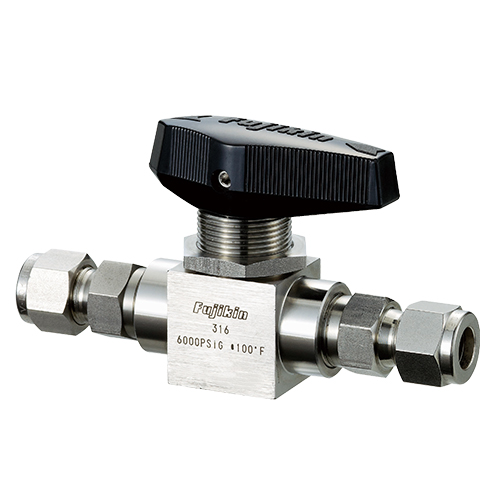

Ball Valves

VUBV-941P-V Series Representative Product No.：VUBV-941P-6.35-V

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Ball Valves

VUBV-941P-V Series Representative Product No.：VUBV-941P-6-V

Material：Stainless Steel (ASTM A479 316) Max Pressure (MPa)：41.3 Max Temperature(℃)：232　Min Temperature(℃)：-17 Connection Type： Double Compression Rings Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Relief Valves

VURF-041L-V Series Representative Product No.：VURF-041L-6.35-V

Material：Stainless Steel (ASTM A182 F316) Max Pressure (MPa)：41.3 Max Temperature(℃)：121　Min Temperature(℃)：-4 Connection Type： Double Compression Rings Type

View Series Detail Inquire

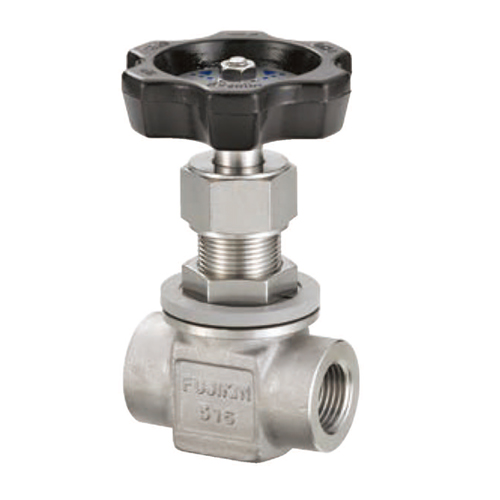

Manual Globe Type Needle Valves

PUS-142P Series New V Collection Product No.:PUS-142PB Size： Rc1/4

Material：Stainless Steel (SUSF316) Max Pressure (MPa)：42 Max Temperature(℃)：232　Min Temperature(℃)：-53 Connection Type： Screw Feature： High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

PUS-142P Series New V Collection Product No.:PUS-142PC Size： Rc3/8

Material：Stainless Steel (SUSF316) Max Pressure (MPa)：42 Max Temperature(℃)：232　Min Temperature(℃)：-53 Connection Type： Screw Feature： High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

PUS-142P Series New V Collection Product No.:PUS-142PD Size： Rc1/2

Material：Stainless Steel (SUSF316) Max Pressure (MPa)：42 Max Temperature(℃)：232　Min Temperature(℃)：-53 Connection Type： Screw Feature： High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

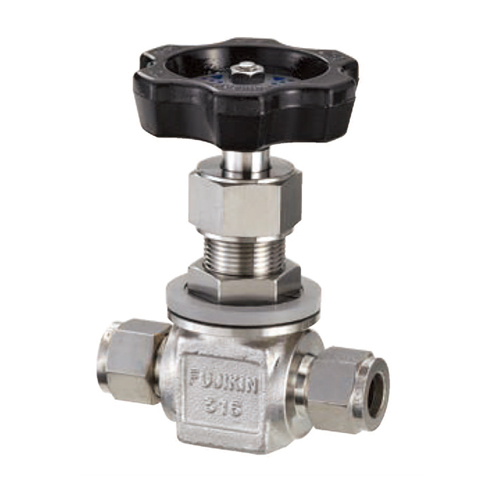

Manual Globe Type Needle Valves

PUS-942P-V Series New V Collection（inch） Product No.:PUS-942P-6.35-V Size： 6.35mm

Material：Stainless Steel (SUSF316) Max Pressure (MPa)：42 Max Temperature(℃)：232　Min Temperature(℃)：-53 Connection Type： Double Compression Rings Type Feature： High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

PUS-142P Series Representative Product No.：PUD-134PB

Material：Stainless Steel (SUSF316) Max Pressure (MPa)：42 Max Temperature(℃)：232　Min Temperature(℃)：-53 Connection Type： Screw Feature： High Pressure Gas Certified

View Series Detail Inquire

Manual Globe Type Needle Valves

PUS-942P-V Series Representative Product No.：PUS-942P-6.35-V

Material：Stainless Steel (SUSF316) Max Pressure (MPa)：42 Max Temperature(℃)：232　Min Temperature(℃)：-53 Connection Type： Double Compression Rings Type Feature： High Pressure Gas Certified

View Series Detail Inquire

Automatic Globe Type Needle Valves

APR-UM-745-UPG Series Valves&Fittings for Ultra High-Pressure Hydrogen Gas（UPG Conenection 50MPa Type） Product No.:APR-UM-745-6.35UPG-N28.5 Size： 6.35mm

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：45 Max Temperature(℃)：80　Min Temperature(℃)：-10 Connection Type： Metal Gasket Type,UPG Feature： High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Automatic Globe Type Needle Valves

APR-UM-745-UPG Series Valves&Fittings for Ultra High-Pressure Hydrogen Gas（UPG Conenection 50MPa Type） Product No.:APR-UM-745-9.52UPG-N28.5 Size： 9.52mm

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：45 Max Temperature(℃)：80　Min Temperature(℃)：-10 Connection Type： Metal Gasket Type,UPG Feature： High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Automatic Globe Type Needle Valves

APR-UM-745-UPG Series Valves&Fittings for Ultra High-Pressure Hydrogen Gas（UPG Conenection 50MPa Type） Product No.:APR-UM-745-12.7UPG-N28.5 Size： 12.7mm

Material：Stainless Steel (SUS316 Ni28.5%) Max Pressure (MPa)：45 Max Temperature(℃)：80　Min Temperature(℃)：-10 Connection Type： Metal Gasket Type,UPG Feature： High Pressure Gas Certified

View Detail Inquire
