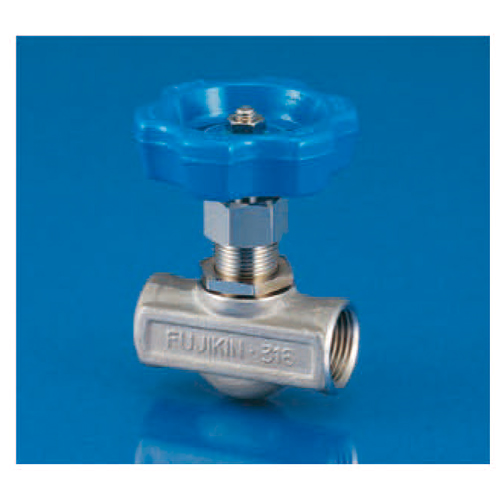

Manual Globe Type Needle Valves

UH-14 Series Stainless Steel Needle Valves Product No.:UH-14D Size： Rc1/2

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UH-14 Series Stainless Steel Needle Valves Product No.:UH-14E Size： Rc3/4

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UH-14 Series Stainless Steel Needle Valves Product No.:UH-14F Size： Rc1

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

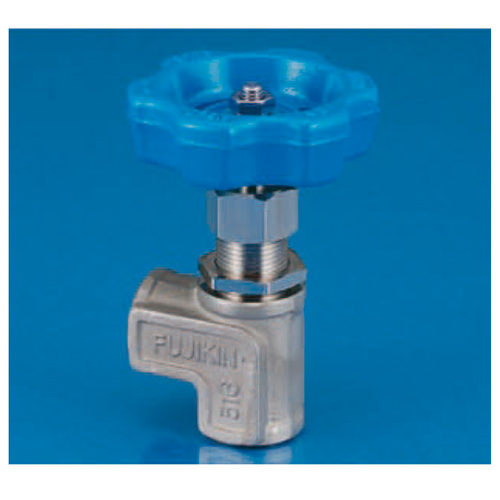

Manual Angle Type Needle Valves

UH-34 Series Stainless Steel Needle Valves Product No.:UH-34D Size： Rc1/2

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Angle Type Needle Valves

UH-34 Series Stainless Steel Needle Valves Product No.:UH-34E Size： Rc3/4

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Angle Type Needle Valves

UH-34 Series Stainless Steel Needle Valves Product No.:UH-34F Size： Rc1

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UH-14L Series Stainless Steel Needle Valves Product No.:UH-14LD-R Size： Rc1/2

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UH-14L Series Stainless Steel Needle Valves Product No.:UH-14LE-R Size： Rc3/4

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UH-14L Series Stainless Steel Needle Valves Product No.:UH-14LF-R Size： Rc1

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Angle Type Needle Valves

UH-34L Series Stainless Steel Needle Valves Product No.:UH-34LD-R Size： Rc1/2

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Angle Type Needle Valves

UH-34L Series Stainless Steel Needle Valves Product No.:UH-34LE-R Size： Rc3/4

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Angle Type Needle Valves

UH-34L Series Stainless Steel Needle Valves Product No.:UH-34LF-R Size： Rc1

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UH-14G Series Stainless Steel Needle Valves Product No.:UH-14GD-R Size： Rc1/2

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UH-14G Series Stainless Steel Needle Valves Product No.:UH-14GE-R Size： Rc3/4

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UH-14G Series Stainless Steel Needle Valves Product No.:UH-14GF-R Size： Rc1

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Angle Type Needle Valves

UH-34G Series Stainless Steel Needle Valves Product No.:UH-34GD-R Size： Rc1/2

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Angle Type Needle Valves

UH-34G Series Stainless Steel Needle Valves Product No.:UH-34GE-R Size： Rc3/4

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Angle Type Needle Valves

UH-34G Series Stainless Steel Needle Valves Product No.:UH-34GF-R Size： Rc1

Material：Stainless Steel (SUS304) Max Pressure (MPa)：3.92 Max Temperature(℃)：150　Min Temperature(℃)：-20 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UN-14M Series Stainless Steel Needle Valves Product No.:UN-14MA-S-R Size： Rc1/8

Material：Stainless Steel (SUSF316) Max Pressure (MPa)：3.92 Max Temperature(℃)：80　Min Temperature(℃)：0 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり

Manual Globe Type Needle Valves

UN-14M Series Stainless Steel Needle Valves Product No.:UN-14MA-L-R Size： Rc1/8

Material：Stainless Steel (SUSF316) Max Pressure (MPa)：3.92 Max Temperature(℃)：80　Min Temperature(℃)：0 Connection Type： Screw Feature： Minute Adjustments Possible,High Pressure Gas Certified

CAD data：

View Detail Inquire

CAD Data：あり
