Manual Angle Type Needle Valves
Product Specifications
| Size | 6.35mm |
|---|---|
| Cv Value | 0.015 |
Series Specifications
| Materials | Stainless Steel (SUSF316) |
|---|---|
| Cleanliness | Class 2 Oil Free (Oxygen Oil Free) |
| Max Pressure (MPa) | 3.92 |
| Max Temperature(℃) | 80 |
| Connection Type | Double Compression Rings Type |
| Feature | Minute Adjustments Possible,High Pressure Gas Certified |
Industries
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
Industry Classification
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science

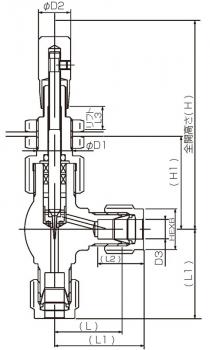

【Assembly Diagram】

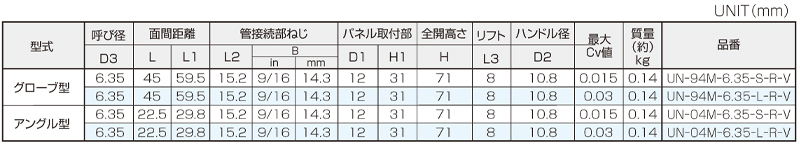

【Dimensions Chart】
【Temperature/Pressure Line Chart】
【Cv Value Curve】
Stainless Steel Needle Valves
￥44,622
税込
商品コード： UN-04M-6.35-S-R-V
関連カテゴリ
材質： 316
