- Automatic Ball Valves [pneumatically operated (double acting)] 0.98MPa AFMO-40R
Automatic Ball Valves
![Automatic Ball Valves [pneumatically operated (double acting)] 0.98MPa AFMO-40R](/en/product/html/upload/save_image/series/807-01/807-01_001PH_l.jpg)
Product Specifications
| Size | Rc1/4 |
|---|---|
| Cv Value | 1.4 |
Series Specifications
| Materials | Stainless Steel Casting (SCS14) |
|---|---|
| Max Pressure (MPa) | 0.98 |
| Max Temperature(℃) | 70 |
| Min Temperature (℃) | -20 |
| Connection Type | Screw |
Industries
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
Industry Classification
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science

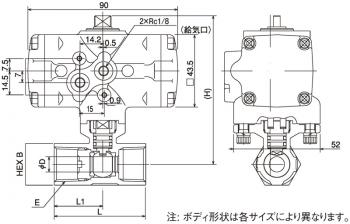

【Assembly Diagram】

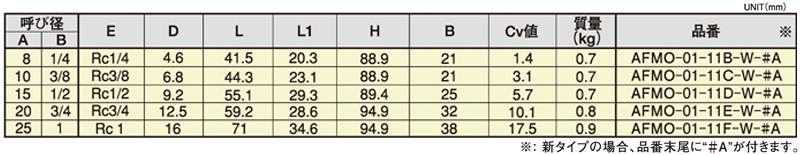

【Dimensions Chart】

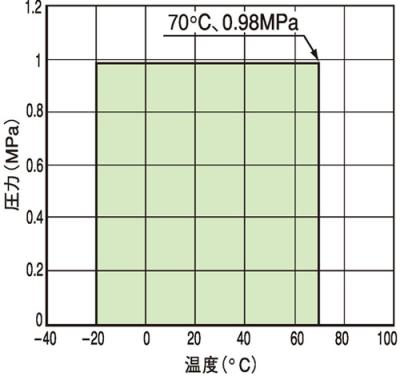

【Temperature/Pressure Line Chart】
Automatic Ball Valves [pneumatically operated (double acting)] 0.98MPa AFMO-40R
￥15,153
税込
商品コード： AFMO-01-11B-W#A
