Manual Globe Type 3-Port Metal Diaphragm Valves With Travel Indicator
Product Specifications
| Size | 9.52mm |
|---|---|
| Cv Value | 0.65 |
Series Specifications
| Materials | Stainless Steel (SUS316L) |
|---|---|
| Cleanliness | Completely Oil Free |
| Max Pressure (MPa) | 1 |
| Max Temperature(℃) | 80 |
| Min Temperature (℃) | -10 |
| Connection Type | Metal Gasket Type |
| Feature | Special Material Gas,Vacuum |
Industries
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
Industry Classification
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
【Assembly Diagram】

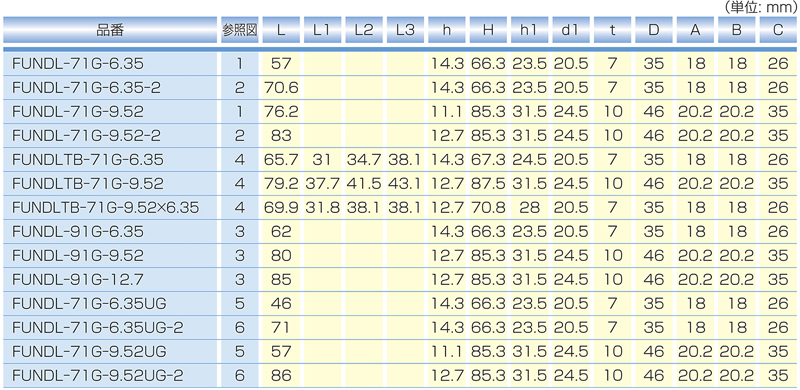

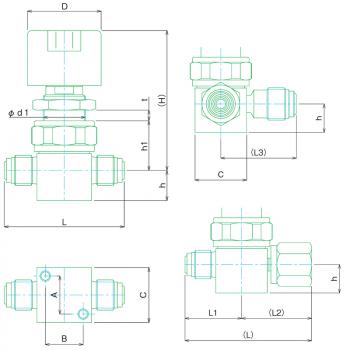

【Dimensions Chart】
【Temperature/Pressure Line Chart】
NEW MEGA
￥0
税込
商品コード： FUNDLTB-71G-9.52
関連カテゴリ
材質： 316L
