Manual Globe Type ANSI 150 Flanged Needle Valves
Product Specifications
| Size | 20A(ANSI150) |
|---|---|
| Cv Value | 1.83 |
Series Specifications
| Materials | Stainless Steel (SUSF316) |
|---|---|
| Max Pressure (MPa) | 1.89 |
| Max Temperature(℃) | 230 |
| Min Temperature (℃) | -45 |
| Connection Type | Flange |
| Feature | High Pressure Gas Certified |
Industries
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
Industry Classification
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
【Assembly Diagram】

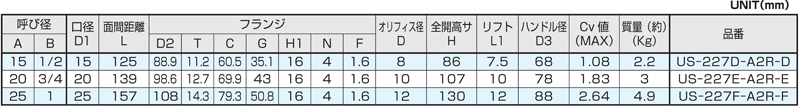

【Dimensions Chart】

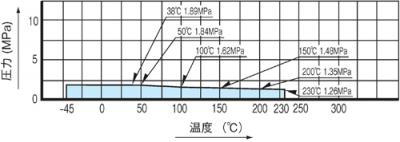

【Temperature/Pressure Line Chart】

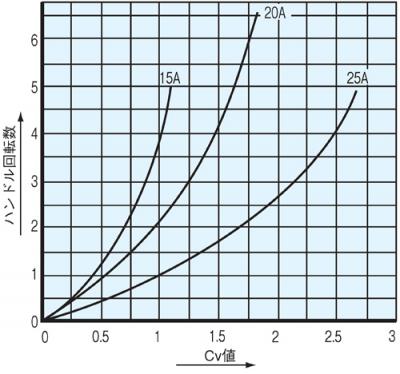

【Cv Value Curve】
NEW US-VALVES NEW Manben Kun
￥96,767
税込
商品コード： US-227E-A2R-E
関連カテゴリ
材質： 316
