Manual Angle Type Needle Valves
Product Specifications
| Size | Rc3/8 |
|---|---|
| Cv Value | 1.47 |
Series Specifications
| Materials | Brass (C3771B) |
|---|---|
| Max Pressure (MPa) | 1.96 |
| Max Temperature(℃) | 80 |
| Min Temperature (℃) | -20 |
| Connection Type | Screw |
Industries
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
Industry Classification
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science

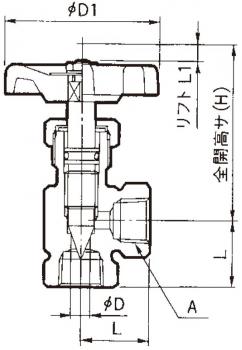

【Assembly Diagram】

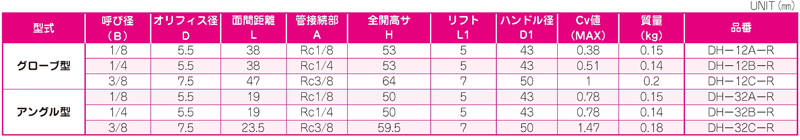

【Dimensions Chart】

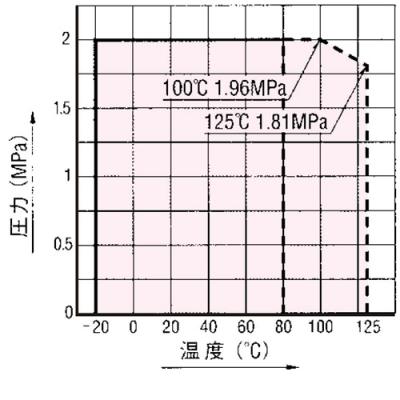

【Temperature/Pressure Line Chart】

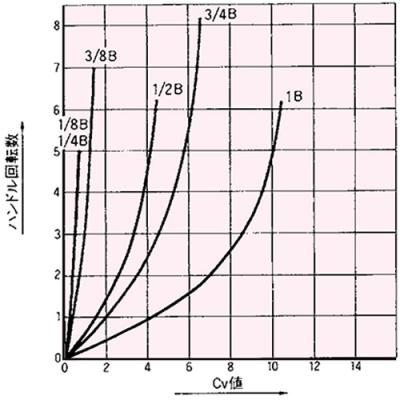

【Cv Value Curve】
Brass Needle Valves
￥3,762
税込
商品コード： DH-32C-R
関連カテゴリ
材質： Brass
