Manual Ball Valves
Product Specifications
| Size | Rc1/4 |
|---|---|
| Cv Value | 1.4 |
Series Specifications
| Materials | Brass (C3771) |
|---|---|
| Max Pressure (MPa) | 1.96 |
| Max Temperature(℃) | 80 |
| Min Temperature (℃) | -10 |
| Connection Type | Screw |
Industries
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
Industry Classification
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science

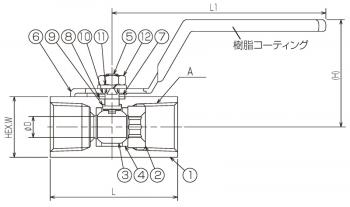

【Assembly Diagram】

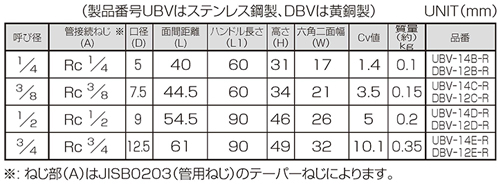

【Dimensions Chart】

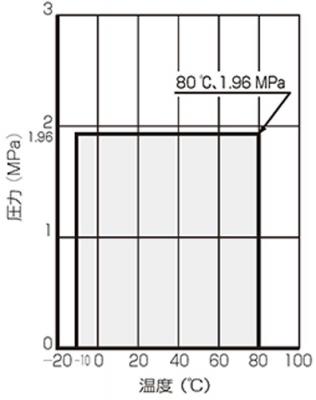

【Temperature/Pressure Line Chart】
Compact Type Ball Valves
￥1,359
税込
商品コード： DBV-12B-R
