Double Compression Rings Type Fittings Female Branch Tees
Product Specifications
| Size | 10mm × Rc3/8 |
|---|
Series Specifications
| Shapes | Union Tees |
|---|---|
| Materials | Brass (C3771B) |
| Max Pressure (MPa) | 4.9 |
| Max Temperature(℃) | 200 |
| Min Temperature (℃) | -45 |
| Connection Type | Double Compression Rings Type,Screw |
Industries
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
Industry Classification
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science

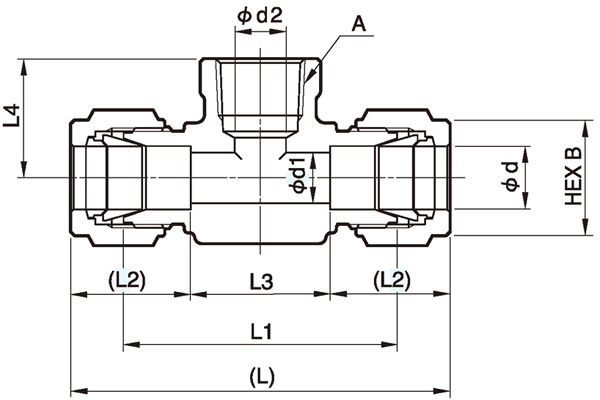

【Assembly Diagram】

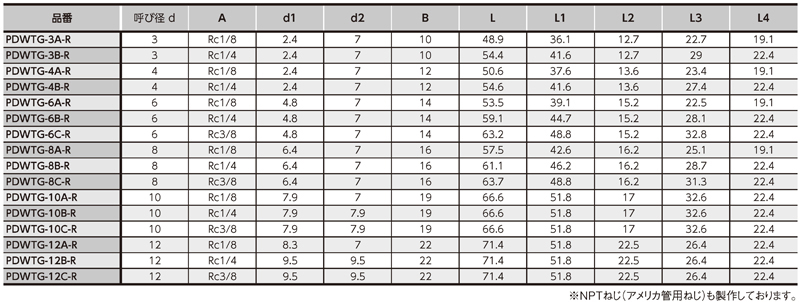

【Dimensions Chart】
【Temperature/Pressure Line Chart】
New V Collection
￥2,738
税込
商品コード： PDWTG-10C-R
関連カテゴリ
材質： Brass
