Ring Joint Type Fittings
Product Specifications
| Size | 12mm × R1/2 |
|---|
Series Specifications
| Shapes | Union Tees |
|---|---|
| Materials | Brass (C3771B) |
| Max Pressure (MPa) | 1.96 |
| Max Temperature(℃) | 125 |
| Min Temperature (℃) | -45 |
| Connection Type | Ring Joint,External Thread Type |
Industries
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
Industry Classification
- Electronics
- Mechatronics
- Chemicals
- Public Laboratories
- Energy
- Biomedical/Food
- Life Science
【Assembly Diagram】

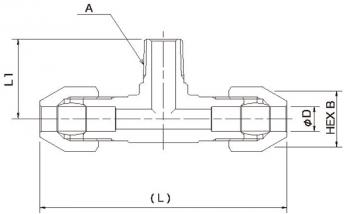

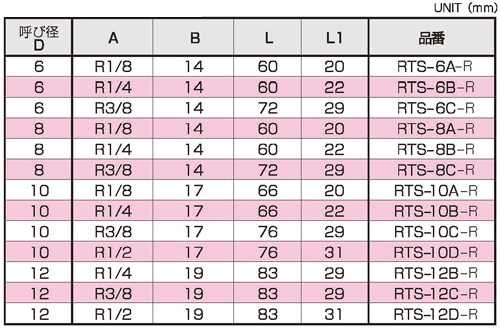

【Dimensions Chart】
【Temperature/Pressure Line Chart】
Ring Joints & Miniature Valves
￥0
税込
商品コード： RTS-12D-R
関連カテゴリ
材質： Brass
