Medical Care Equipment

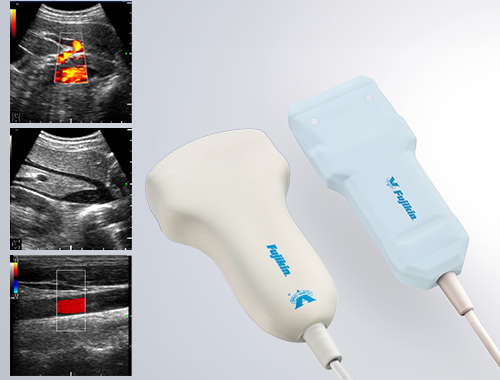

Ultrasound Diagnostic Equipment
Product Name：Ultrasound Diagnostic Equipment MUS-P0303, Certification Number：303ALBZX00012000
Comprehensive features include color display and bladder urine volume measurements.
Support Information
No AC power required, suitable for various settings.
The MUS Series was developed with the aim of creating an ultrasound diagnostic system that can be deployed anywhere at any time.
The MUS Series improves portability by reducing the size and weight of the equipment and by solving problems related to the unavailability of appropriate power sources.

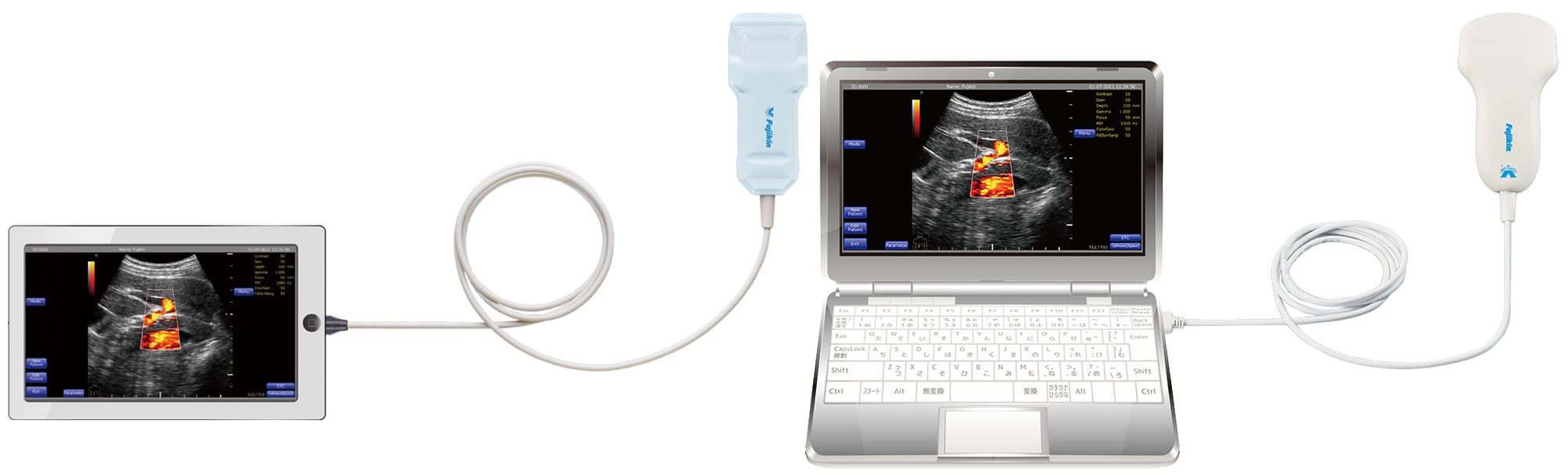

Simply connect the probe to a Windows or Android computer device to view images.
Windows and Android compatible
You can simply connect it to Windows or Android computer devices to view images.

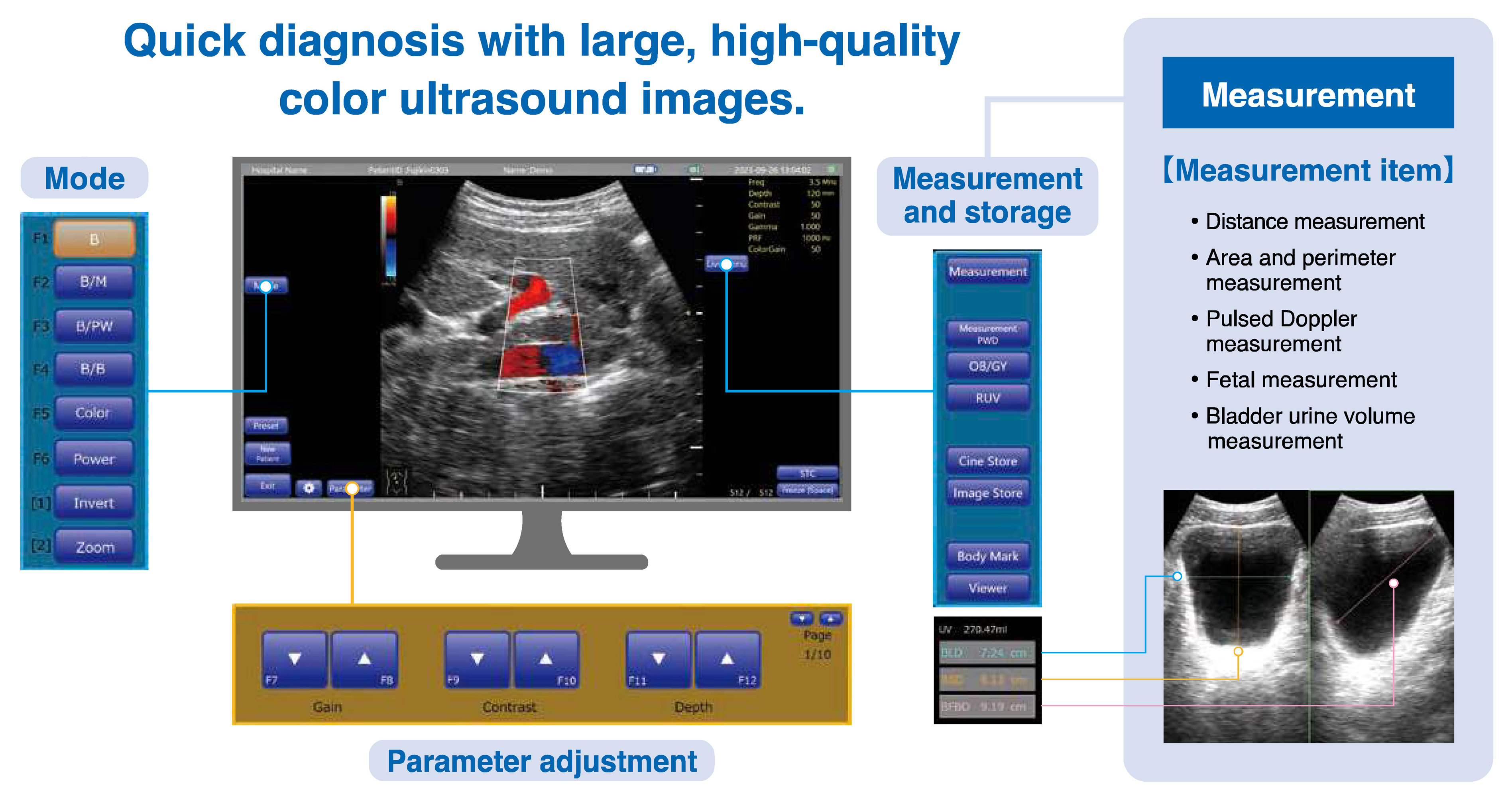

Quick diagnosis with large,high-quality color ultrasound images.
Operating environment
Please use with specified computer models.
Inquire about models for compatibility. *1
| Image display device specifications *2, *3, *4 | ||
|---|---|---|
| OS | Windows10、11 | Android11～13 |
| Display resolution | 1,920 x 1,080 or higher | |
| Interface | USB 3.0 or higher *5 | |
*1 It may not be compatible with all commercially available computers.
*2 Specifications,etc.,are subject to change without notice.
*3 Display capabilities may be limited based on model-specific hardware and software configurations,coexisting apps,and usage situation. There is no guarantee of operation for all products and devices.
*4 For detailed specifications and inquiries about models with confirmed compatibility,please contact the "Contact Information" at the end.
*5 Information is based on the catalog at the time of publication and may not be compatible with all future versions.

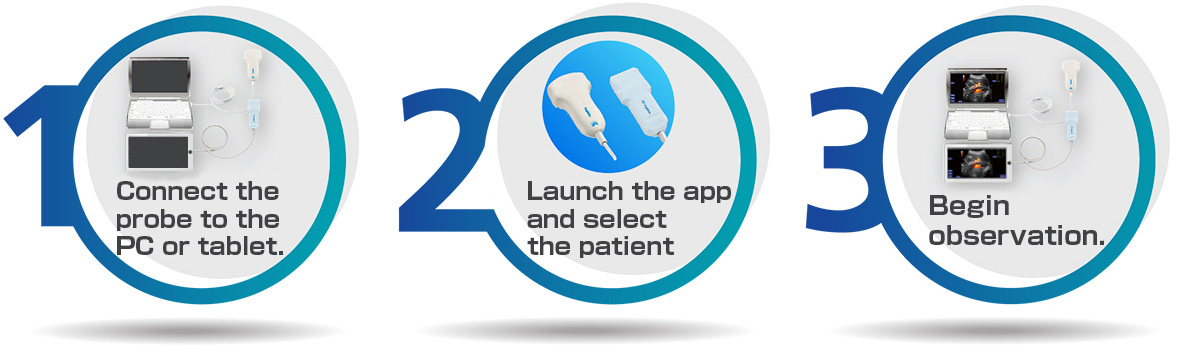

Simple operation
With simple operations, you can easily use the echo. *1
*1 There is a possibility of changes to the appearance of the app and other aspects without prior notice.

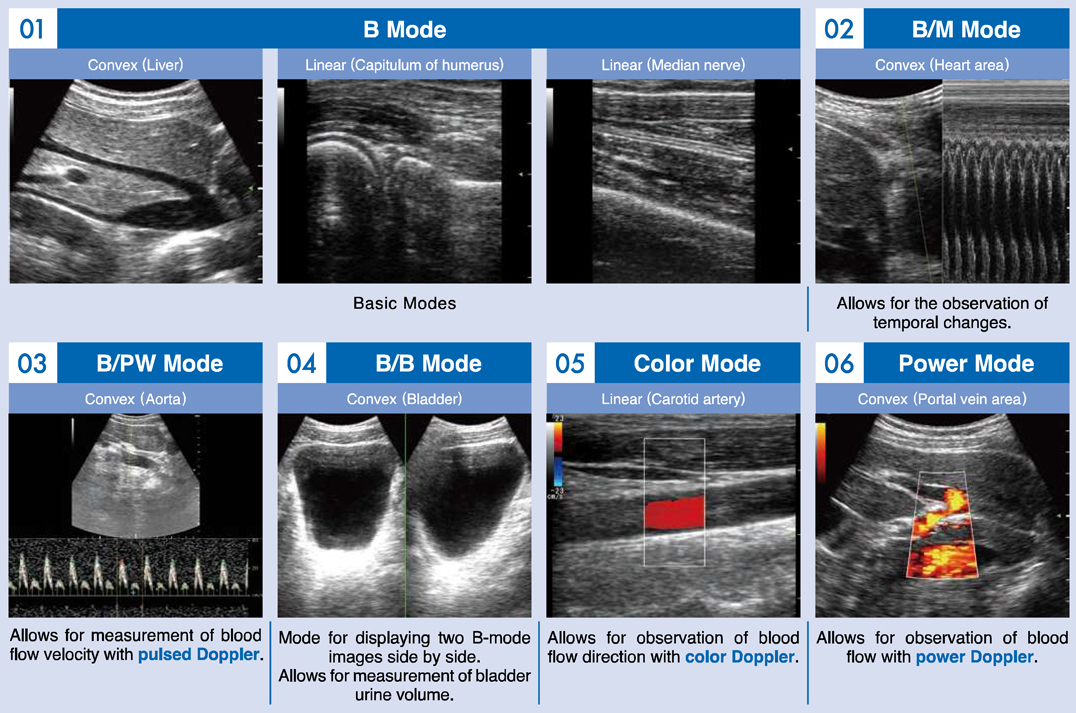

Six comprehensive display modes.
In addition to the B mode, it is equipped with Doppler functionality, allowing for versatile usage.
The measurement functions are also extensive.
In addition to basic measurements such as distance, area, circumference, and fetal measurements, it also features advanced capabilities like bladder urine volume measurement and pulse Doppler measurement. Furthermore, you can adjust image quality parameters such as Gain, Contrast, Depth, and more.

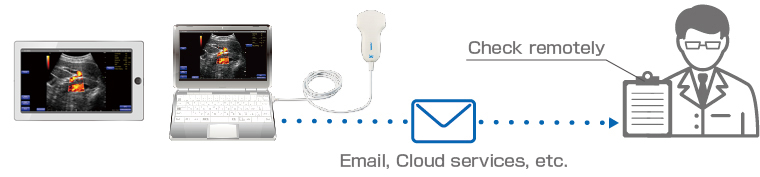

Data transmission from external sources.
Save still images and videos to a PC or tablet and send the saved data.
Using email or cloud services, you can view images even from a remote location. *1
*1 Data transfer depends on the capabilities of Windows PC and Android tablet.

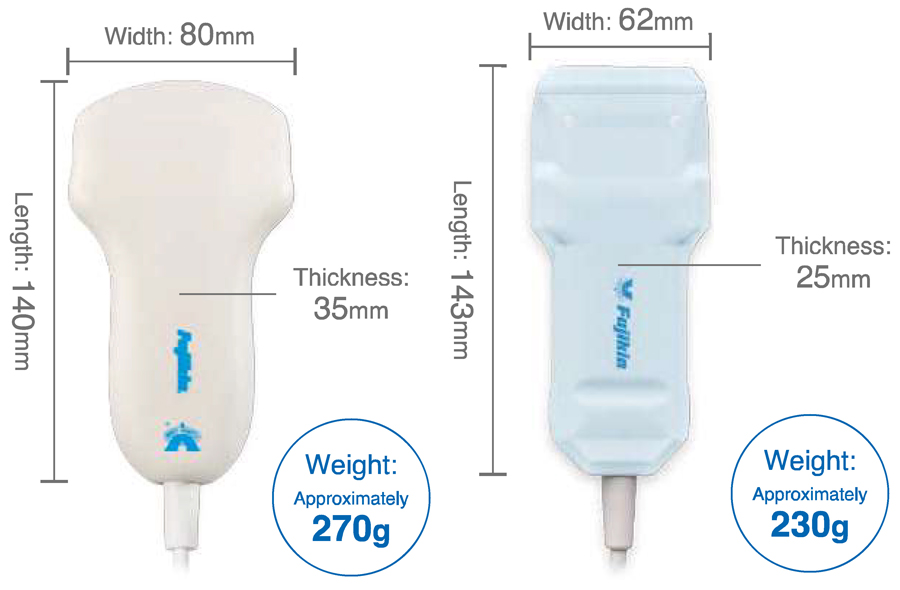

Product lineup
Specifications List *1
| Item | Convex Type(3.5MHz) | Linear Type(10MHz) |
|---|---|---|
| Output Frequency | 2.8MHz, 3.5MHz, 4.0MHz | 6.7MHz, 7.7MHz, 10.0MHz, 12.5MHz |
| Display Modes | B Mode, B/M Mode, B/PW Mode, B/B Mode, Color Mode, Power Mode | |
| Main Features | Display depth, Gain, Contrast, Gamma, STC, Focus depth adjustment, Left/right inversion, Partial zoom | |
| Other Features | Measurements of Distance, Area, and perimeter, Image storage, Cine buffer storage, Printing*2, Patient information, Image display, OB/GY, Body markers, Frame correlation |
|
| Probe Electrical Ratings | Rated Power Voltage:5VDC (Supplied via USB connector from the image-displaying computer device) Rated Power Frequency:DC Input |
|
| Included Accessories | Instruction manual, pouch, display software | |
*1 Specifications and appearance are subject to change without notice.
*2 Printing:Requires printer setup, etc.
